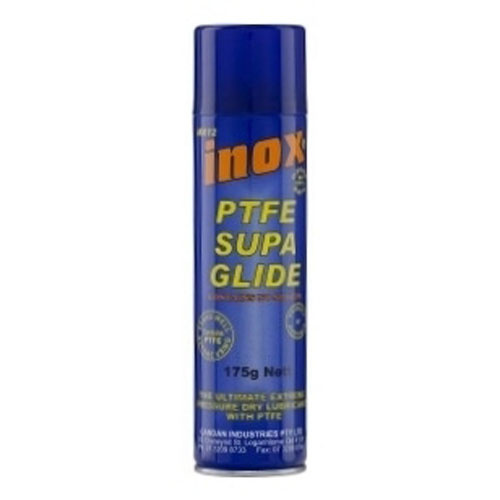

Inox MX12 PTFE Supa Glide Extreme Pressure Dry Lubricant Aerosol 175g

The ultimate extreme pressure dry lubricant with PTFE.

INOX-MX12 PTFE SUPA GLIDE is a fast drying, resin bonded polytetrafluoroethylene dry film lubricant for the coating of timber, metal, plastic, rubber, glass and most other surfaces.

It is designed for low-friction, light load repetitive stresses that allows moving parts to wear longer, work harder and require less maintenance. Has applications where other conventional sintered PTFE coatings cannot be considered.

Features:

• Excellent lubrication qualities
• Good surface adhesion
• Hard abrasion-resistant surface
• Clean and easy to apply
• Thin film Longer wear life than pure PTFE coatings
• Cures at room temperature
• Inhibits corrosion
• Does not wash off with water
• Resists contamination from dirt and dust
• Life-long lubrication in many applications

Technical Specifications:

• Coefficient of friction: 0.06 to 0.09 (static)
• Film thickness: 5.1 to 17.8 um (0.0002 to 0.0007 inches)
• Service temperature: 180 °F (82 °C)
• Intermittent temperature: 240 °F (116 °C)
• Chemical resistance: INOX-mx12 PTFE SUPA GLIDE coatings are moderately resistant to some inorganic corrosives such as sulphuric acid and sodium hydroxide.

CAUTION: Contact with organic solvents such as alcohols, esters and ketones should be avoided.

Extended Information: Applying MX12

The surface to be coated must be clean, dry and free of any contaminants such as dust, oil, grease or powder.

Information on surface preparation for more critical applications is listed below.

Once the surface area has been prepared, spray a liberal coating on the area you want to lubricate and then allow time for a the carrier and propellent gas to evaporation.

Curing times are listed below:

WOOD - Sand lightly and wipe clean

STEEL - degrease or sandblast

STAINLESS STEEL - Degrease or sandblast

ALUMINIUM - Degrease, sandblast or anodize

COPPER ALLOYS - Degrease, sandblast and/or acid etch

RUBBER, PLASTICS, GLASS - Clean with a solvent that will not affect the substrate

INOX-MX12 PTFE SUPA GLIDE will cure at room temperature. Coatings are tough dry in about 5 minutes, dry enough to handle in 20-30 minutes depending on the film thickness.



Optimum hardness for the best lubrication performance is 2 hours.

You have to allow at least 2 hours from application before use.

Overnight curing will give the best long term results.

High humidity may increase opacity or blush and exposure to strong sunlight may cause darkening, but these will not affect the coating performance.
